| Information | |
|---|---|
| Plattform | Consumer |
| Arkitektur | Ada Lovelace |
| Generation | GeForce RTX 40 |
| Föregående generation | GeForce RTX 30 |
| Nästa generation | GeForce RTX 50 |
| Maxtemperatur | 90 C |
| Kärna | |
|---|---|
| Namn | AD103 |
| Tillverkare | TSMC |
| Processnod | 5 nm |
| Transistorer | 45900 million |
| Chipstorlek | 379.0 mm² |
| Densitet | 121.1 /mm² |
| GPU-kärnkonfiguration | |
|---|---|
| Kärnor | 9728 |
| TMU | 304 |
| ROP | 112 |
| Tensor-kärnor | 304 |
| RT-kärnor | 76 |
| Minne | |
|---|---|
| Teknologi | GDDR6X |
| Storlek | 16 GB |
| Buss | 256 bit |
| Bandbredd | 358.4 GB/s |
| Hastighet | 11.2 Gbps |
| Klockfrekvenser | |
|---|---|
| Basfrekvens | 2205 MHz |
| Boostfrekvens | 2655 MHz 2505 MHz |
| Minnefrekvens | 1400 MHz |
| Ström | |
|---|---|
| 16-pin | 1 |
| TDP | 320 w |
| Rekommenderad strömförsörjning | 750 w |

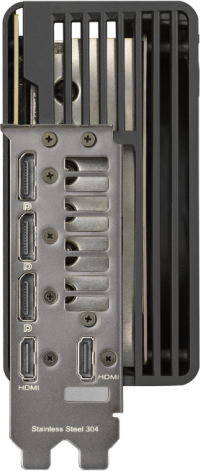

| Bildutgång | |
|---|---|
| DisplayPort | 3 1.4a |
| HDMI | 2 2.1a |
| HDCP | 2.3 |
| Skärmar | 4 |
| Dimensioner | |
|---|---|
| Slot | 3.5 |
| Längd | 357.6 mm |
| Höjd | 149.3 mm |
| Bredd | 70.1 mm |
| Grafikkort▲ | Pris▲ | Boostfrekvens▲ | Slot▲ | Längd▲ | Höjd▲ | Bredd▲ |
|---|---|---|---|---|---|---|
| 2535 MHz +1.2% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2625 MHz +4.8% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2625 MHz +4.8% | 4.4 | 310 mm | 144.8 mm | 87.5 mm | ||
| 2535 MHz +1.2% | 3.5 | 357.6 mm | 149.3 mm | 70.1 mm | ||
| 2655 MHz +6.0% | 3.5 | 357.6 mm | 149.3 mm | 70.1 mm | ||
| 2535 MHz +1.2% | 3.5 | 357.6 mm | 149.3 mm | 70.1 mm | ||
| 2655 MHz +6.0% | 3.5 | 357.6 mm | 149.3 mm | 70.1 mm | ||
| 2535 MHz +1.2% | 3.7 | 348.2 mm | 150 mm | 72.6 mm | ||
| 2625 MHz +4.8% | 3.7 | 348.2 mm | 150 mm | 72.6 mm | ||
| 2535 MHz +1.2% | 3.8 | 342 mm | 150 mm | 75 mm | ||
| 2505 MHz | 3.5 | 342 mm | 150 mm | 70 mm |
