| Information | |
|---|---|
| Plattform | Consumer |
| Arkitektur | Ada Lovelace |
| Generation | GeForce RTX 40 |
| Föregående generation | GeForce RTX 30 |
| Nästa generation | GeForce RTX 50 |
| Gränssnitt | PCIe 4.0 x16 |
| Maxtemperatur | 90 C |
| Kärna | |
|---|---|
| Namn | AD106 |
| Tillverkare | TSMC |
| Processnod | 5 nm |
| Transistorer | 22900 million |
| Chipstorlek | 188.0 mm² |
| Densitet | 121.8 /mm² |
| GPU-kärnkonfiguration | |
|---|---|
| Kärnor | 4352 |
| TMU | 136 |
| ROP | 48 |
| SM-enheter | 34 |
| Tensor-kärnor | 136 |
| RT-kärnor | 136 |
| Minne | |
|---|---|
| Teknologi | GDDR6 |
| Storlek | 8 GB |
| Buss | 128 bit |
| Bandbredd | 288.0 GB/s |
| Hastighet | 18.0 Gbps |
| Klockfrekvenser | |
|---|---|
| Basfrekvens | 2310 MHz |
| Boostfrekvens | 2565 MHz 2535 MHz |
| Minnefrekvens | 2250 MHz |
| Ström | |
|---|---|
| 8-pin | 1 |
| TDP | 160 w |
| Rekommenderad strömförsörjning | 650 w 550 w |

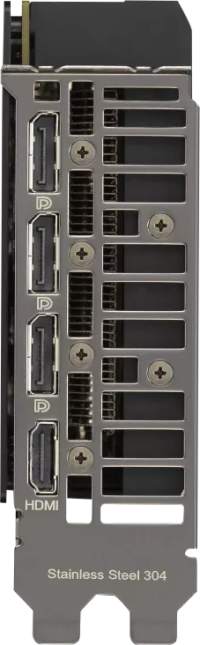

| Bildutgång | |
|---|---|
| DisplayPort | 3 1.4a |
| HDMI | 1 2.1a |
| HDCP | 2.3 |
| Dimensioner | |
|---|---|
| Slot | 2 |
| Längd | 202 mm |
| Höjd | 120 mm |
| Bredd | 40.1 mm |
| Grafikkort▲ | Pris▲ | Boostfrekvens▲ | Slot▲ | Längd▲ | Höjd▲ | Bredd▲ |
|---|---|---|---|---|---|---|
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 4 990 kr Elgiganten.se | 2565 MHz +1.2% | 2.1 | 199 mm | 120 mm | 42 mm | |
| 2565 MHz +1.2% | 3.1 | 311.4 mm | 133.5 mm | 61.9 mm | ||
| 2715 MHz +7.1% | 3.1 | 311.4 mm | 133.5 mm | 61.9 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 3.2 | 300 mm | 139 mm | 62.4 mm | ||
| 2655 MHz +4.7% | 3.2 | 300 mm | 139 mm | 62.4 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 2 | 202 mm | 120 mm | 40.1 mm | ||
| 2595 MHz +2.4% | 2 | 202 mm | 120 mm | 40.1 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 2.5 | 269 mm | 120 mm | 50 mm | ||
| 2610 MHz +3.0% | 2.5 | 269 mm | 120 mm | 50 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm |
